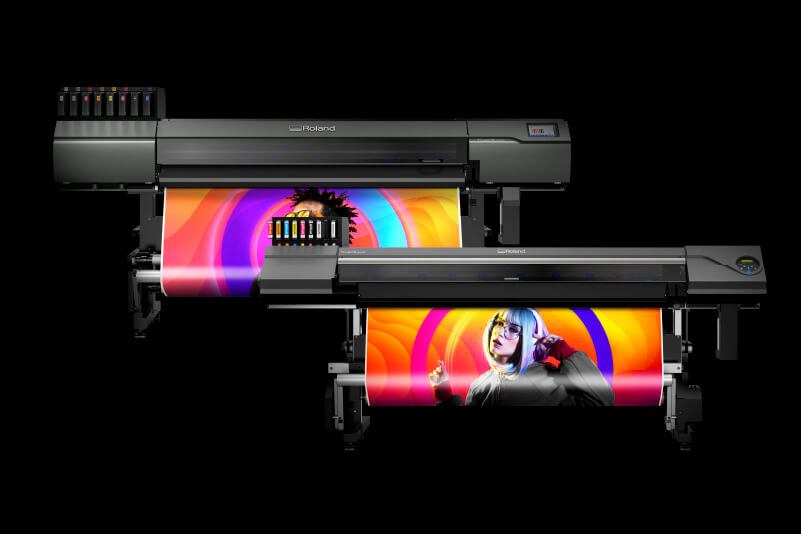

TrueVISNEW LG & MG Series UV Printer Cutters
Combining the flexibility of print and cut, the benefits of UV-LED printing and TrueVIS heritage, the LG and MG series add a new dimension to graphics printing.
- High-definition output
- Speciality printing for textures and effects
- Broad media compatibility
- High density white ink
- Fast drying print for quick turnaround and finishing
Find a Dealer Download LG Series Brochure Download MG Series Brochure
Roland Rental, Roland DG's finance program, is aimed to make it easy for you to purchase and pay for your new business investment.
Roland Rental enables you to enjoy the use of Roland DG equipment throughout its useful life without the associated costs of ownership including up front capital investment. Roland Rental offers a simple approval criteria and documentation to secure your Roland DG equipment.
Roland Rental is a traditional finance agreement whereby you own the asset at the end of the finance term with a nominal payment at the end of the term. It also allows you to bundle in other products, including software, with your agreement.
WINNER
Keypoint Intelligence BLI Pick Award
UV Print and Cut Solutions
Take Print and Cut Further
TrueVIS is synonymous with industry-beating print and cut machines. Enhance your capabilities with the added power of premium-quality UV-LED printing technology and speciality effects capabilities, and offer your customers even more products.
Everything You Need to Succeed
Choose from a variety of models and sizes to suit your business.
Power your workflow with our most intelligent engine yet
Get stunning results every time with economical Eco UV ink
Complete range of premium after-sales services
Ultimate Print Expression
The combination of ultra high-definition print technology and specially formulated UV ink lets you accurately reproduce colours in a wide colour gamut.
High Quality Ink
Using the latest ECO-UV EUV5 inks for exceptional and premium-value printing, we go beyond CMYK to give you even more options and flexibility. Talk to a Roland DG expert about your print requirements to discover the ink configuration that’s right for you.
CMYK
Get premium results with high-quality CMYK EUV ink
Gloss
Generate a multitude of tangible effects, simulated embossing and gloss finishes
White
Print high-opacity white details or add sub-coats for dark or transparent materials
Red and Orange
With our True Rich Color preset, extend your available gamut and reproduce brand colours perfectly
Primer
Apply primer to the print area with precision for extensive media compatibility
Decal Release Primer*
Easily customise curved or irregular items, without cutting, using decal transfers
Shrink Inks*
Perfect for flexibile packaging, Roland DG EUVS inks offer extended shrink capability.
*Available on MG Series models only.
Certifications
GREENGUARD Gold
ECO-UV5 inks are GREENGUARD Gold certified, meaning they meet strict standards of low chemical emissions making them ideal for indoor applications.
LG SeriesHigh-performance Features

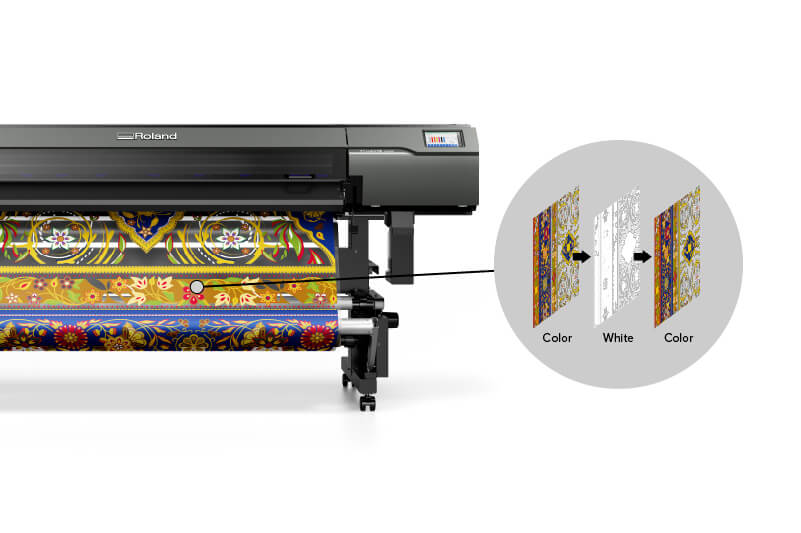

One Pass Multilayer Printing
Print 3 layers in a single job, even in large format or lengthy print runs, with accurate and stable output. The following layer combinations can be selected:

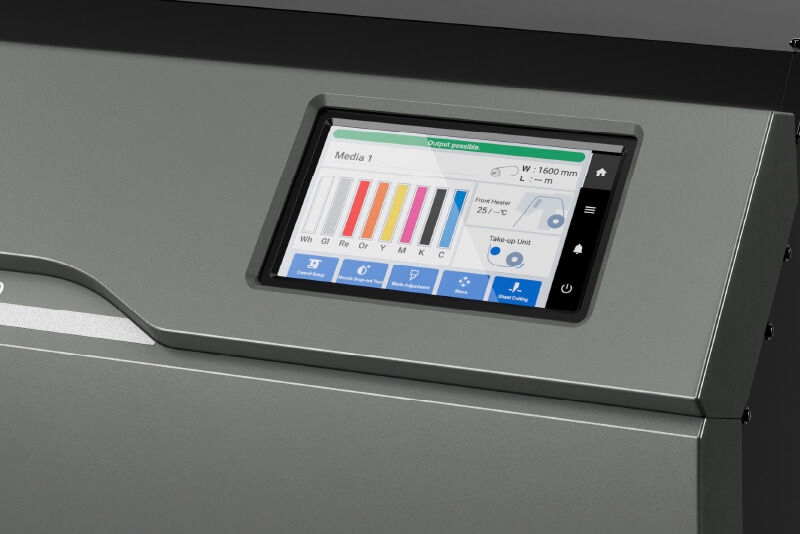

Touch Screen Functionality
Control your device with the greatest of ease thanks to the 7" touch screen, complete with clear and simple menus to give you the information and the functionality you need, when you need it.

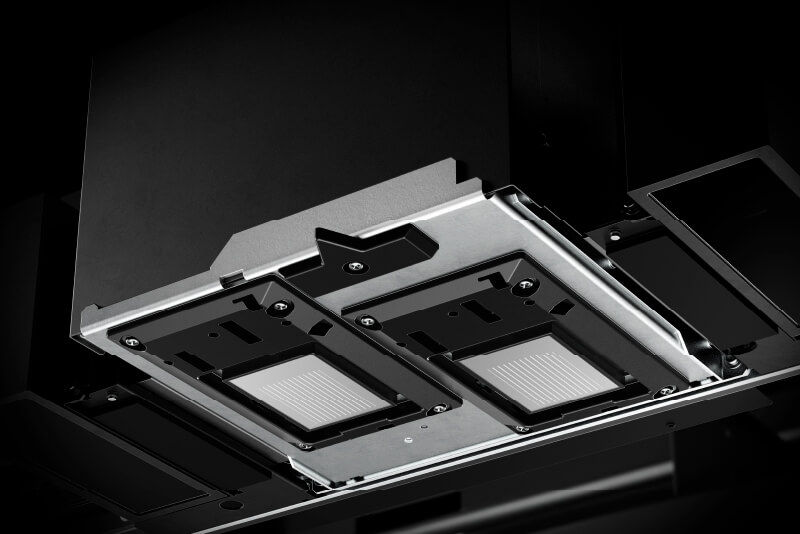

High-Speed Printing
With brand-new print heads in a staggered formation, new UV-LED lamps and the instantly cured UV ink, you can take your print-business to a new level of efficient software and boost your profits.

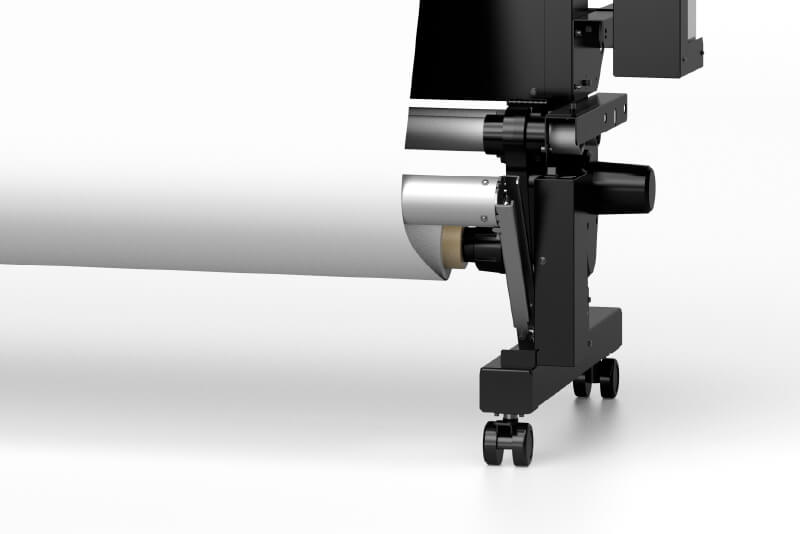

Integrated Take-up Unit
Robust, accurate and easy to use, the LG solution includes a built in take-up unit to enable long unsupervised print runs.

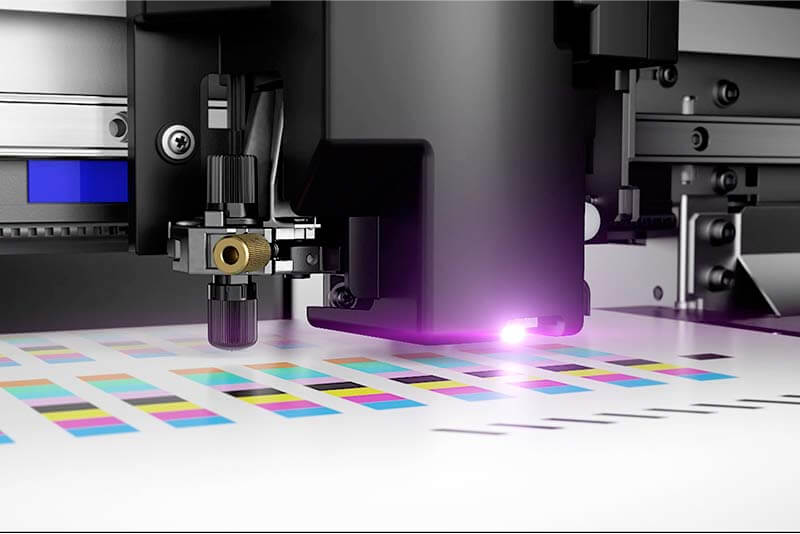

Simple Media Calibration
Save even more time with fast and easy media gap and feed compensation. Optical registration technology ensures precise print accuracy and consistent, repeatable results without fuss.
MG SeriesCustom Professional Features

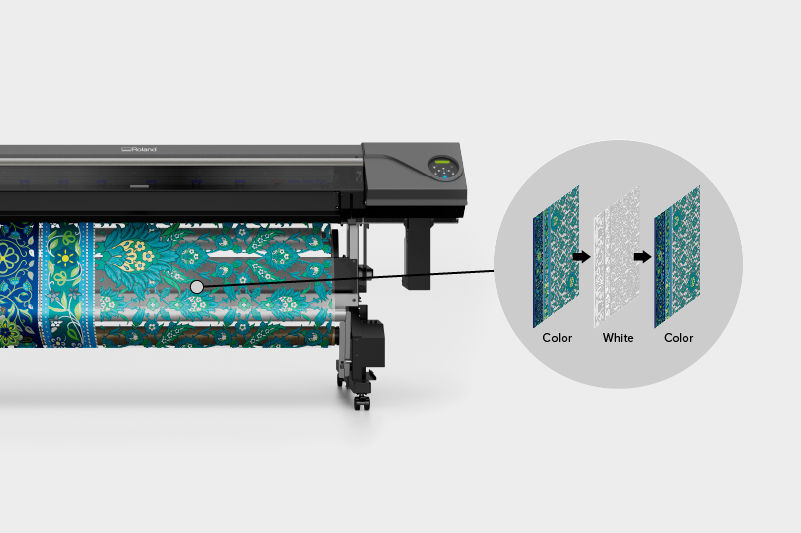

One Pass Multilayer Printing
Print 3 layers in a single job, even in large format or lengthy print runs, with accurate and stable output. The following layer combinations can be selected:
- Color → White → Color
- White → Color → Gloss (Matte Varnish)
- Primer → White → Color
- Primer → Color → White

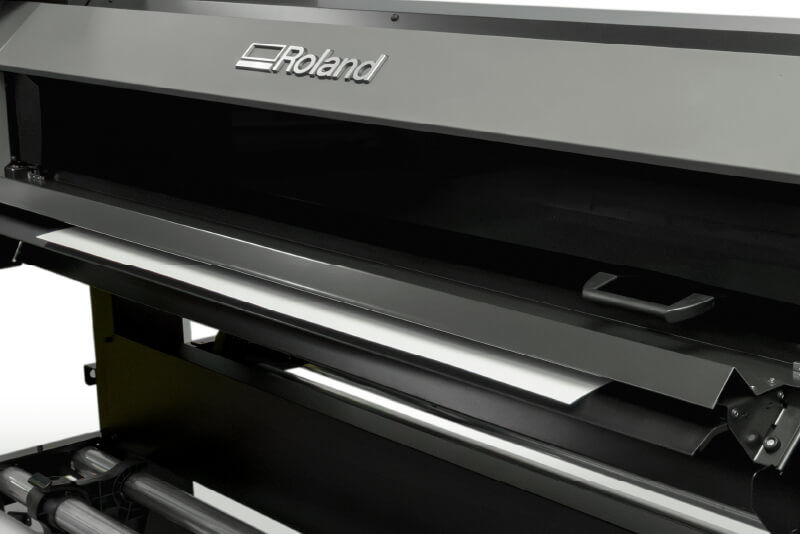

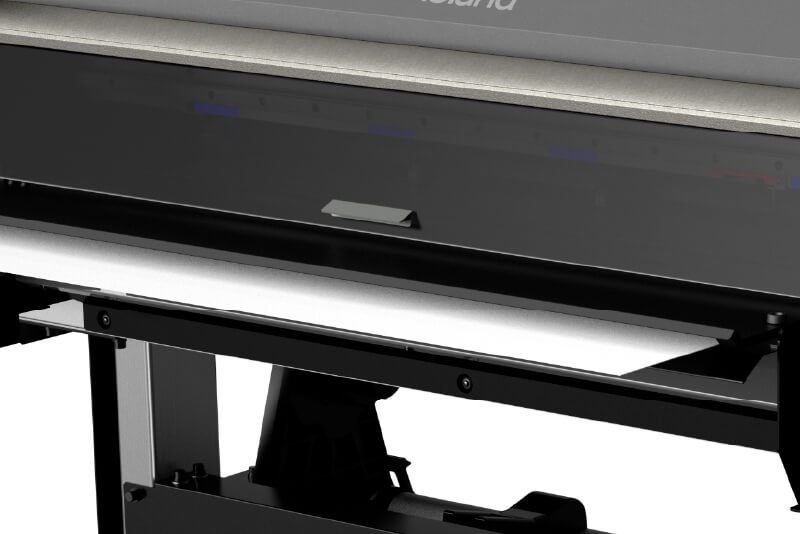

Extension Table for
Get more stability and accuracy when printing onto thicker card stock with the ET-64/30 extension table*.
This provides a firm platform which supports semi-rigid media or folding carton paper stocks up to 1 mm as it is fed through the device allowing the simple production of packaging prototypes.
* Optional extra

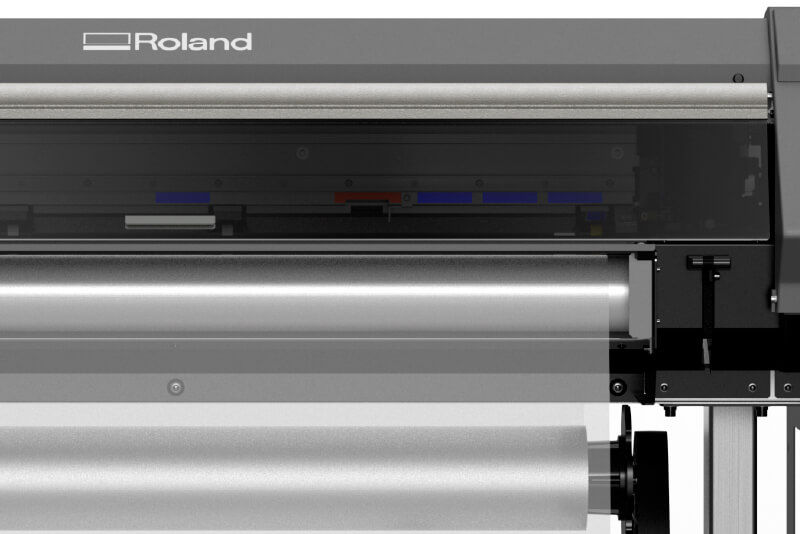

Tension Bar for Thin Films *
The optional TB-30 tension bar adds stability when printing onto thinner media and films of 30 microns and above. This provides an ideal solution for the fast and simple production of flexible packaging prototypes on OPP or PET films.
* Optional extra. A take-up unit and MG-300 are required to use the TB-30. The TB-30 cannot be used in conjunction with the ET-30 extension table.

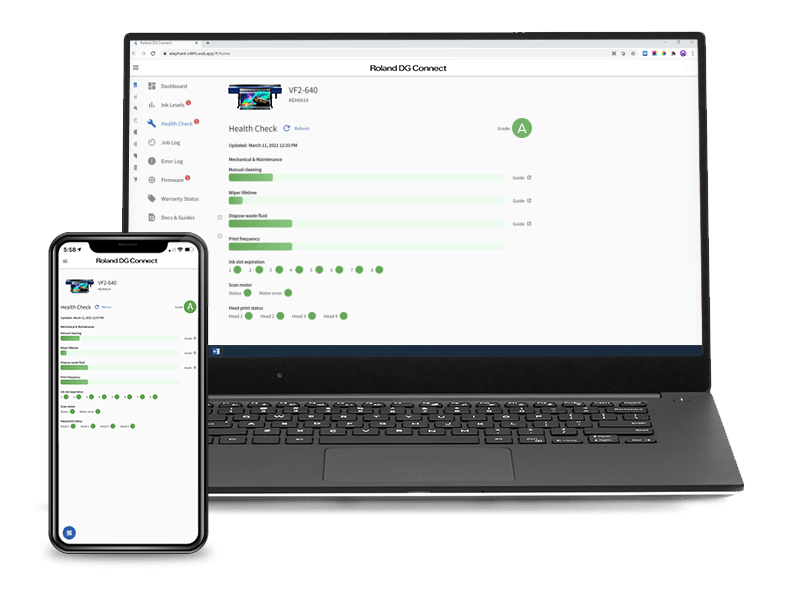

Roland DG Connect App
For Everything Creative
Reduce downtime and improve work efficiency with a machine monitoring assistant that helps you gain a detailed understanding of your entire print operation while keeping your device running at optimum performance.
Key benefits
|
Great Return on Investment Affordable and powerful, the LG and MG Series can generate profits and pay for itself quickly. |
|
Powerful Software Included VersaWorks 6 included, letting you produce print and cut output in a simple workflow. |
|
Priced to Suit Your Business Roland DG UV print and cut solutions are available to fit any budget. |
|
Sheet Perforated Cut Separate individual jobs without cutting the backing sheet enabling unattended long runs. |
 |
Efficient and Fluid Workflows Produce your work, your way with flexible job-management features. |
 |
Professional Colour Management Match your customers' colour with ease thanks to advanced RIP features. |
 |
Fast Set-up and Ease of Use Plug in and start working immediately thanks to Roland DG’s user-friendly interface. |
 |
The Roland DG Legacy Make a safe investment with Roland DG’s world-renowned quality and reliability. |
|
Low Running Cost Long-life print heads and ink-clogging prevention ensures long life and sustained quality. |
|
Texture Libraries Add extra expression to your prints easily with a library full of exciting printable textures. |
|
Mobile Cost Tracking Track ink usage and more in real time with the Roland DG Connect mobile app. |
|
ICC Profiles Access Roland DG's library of ICC profiles and find hundreds of profiles to match your needs. |
For the Future
With over 28.000 users worldwide, TrueVIS perfectly embodies
Specifications
| Model | LG-640 | LG-540 | LG-300 | ||||
| Printing method | Piezo ink-jet method | ||||||
| Media | Width | 335 to 1625 mm |
295 to 1371 mm |
182 to 762 mm |
|||
| Thickness |
Max. 1.0 mm (39.3 mil) with liner, for printing Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting |
||||||
| Roll outer diameter | Max. 250 mm (9.8 in.) |
||||||
| Roll weight | Max. 45 kg (99 lb.) | Max. 35 kg (77 lb.) | Max. 30 kg (66 lb.) | ||||
| Core diameter | 76.2 mm (3 in.) or 50.8 mm (2 in.) | ||||||
| Printing / cutting width 1 | Max. 1600 mm (62.9 in.) | Max. 1346 mm (52.9 in.) | Max. 736 mm (28.9 in.) | ||||
| Ink |
Type | ECO-UV (EUV5P) 750ml pouch | |||||
| Colours |
Eight colours (Cyan, Magenta, Yellow, Black, Gloss, White, Orange, and Red) Seven colours (Cyan, Magenta, Yellow, Black, Gloss, White, and Red) and Primer Seven colours (Cyan, Magenta, Yellow, Black, White, Orange, and Red) and Primer Seven colours (Cyan, Magenta, Yellow, Black, White, Orange, and Red) Six colours (Cyan, Magenta, Yellow, Black, Gloss, and White) and Primer Six colours (Cyan, Magenta, Yellow, Black, Gloss, and White) Four colours (Cyan, Magenta, Yellow, and Black) |
||||||
| Ink curing unit | Built-in UV-LED lamp | ||||||
| Print resolution (dots per inch) | Max. 1200 dpi | ||||||
| Cutting speed | 10 to 300 mm/s |
||||||
| Blade force 2 | 30 to 500 gf | ||||||
| Blade | Type | Roland CAMM-1 series blade | |||||
| Offset | 0 to 1.500 mm (0 to 59 mil) | ||||||
| Software resolution (when cutting) | 0.025 mm/step (0.98 mil/step) | ||||||
| Media heating system 3 | Front heater set temperature: 30 to 55 ℃ (86 to 131 °F) | ||||||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||||||
| Power-saving function | Automatic sleep feature | ||||||
| Power requirements | 100-120/220-240 Va.c. 50/60 Hz 6.5/3.2 A | 100-120/220-240 Va.c. 50/60 Hz 6.5/3.2 A | 100-120/220-240 Va.c. 50/60 Hz 5.7/2.6 A | ||||
| Power consumption | During operation | Approx. 800 W | Approx. 800 W | Approx. 650 W | |||
| Sleep mode | Approx. 85 W | ||||||
| Acoustic noise level | During operation |
63 dB (A) or less | |||||
| During standby | 58 dB (A) or less | ||||||
| Dimensions (with stand) | 2902 mm x 748 mm x 1412 mm |
2648 mm x 748 mm x 1412 mm |
2038 mm x 748 mm x 1412 mm |
||||
| Weight (with stand) | 209 kg (461 lb.) | 198 kg (395 lb.) | 168 kg (371 lb.) | ||||
| Environment | During operation 4 | Temperature : 20 to 32 ℃ (68 to 89.6 °F), Humidity: 35 to 80 % RH (no condensation) | |||||
| Not operating | Temperature : 5 to 40 ℃ (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation) | ||||||
Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
| Model | MG-640 | MG-300 | |||||
| Printing method | Piezo ink-jet method | ||||||
| Media | Width | 210 to 1625 mm |
182 to 762 mm |
||||
| Thickness |
Max. 1.0 mm (39.3 mil) with liner, for printing Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting |
||||||
| Roll outer diameter | Max. 210 mm (8.2 in.) |
||||||
| Roll weight | Max. 40 kg (88 lb.) | Max. 25 kg (55 lb.) | |||||
| Core diameter | 76.2 mm (3 in.) or 50.8 mm (2 in.) | ||||||
| Printing / cutting width 1 | Max. 1600 mm (62.9 in.) | Max. 736 mm (28.9 in.) | |||||
| Ink |
Type |
ECO-UV (EUV5) 220 ml cartridge (white) ECO-UVS 220 ml cartridge (cyan, magenta, yellow, black, white) ECO-UV (EUV5) 500 ml cartridge (cyan, magenta, yellow, black, red, orange, gloss, primer) |
|||||
| Colours |
Eight colours (cyan, magenta, yellow, black, red, orange, white, gloss) Seven colours (cyan, magenta, yellow, black, red, orange, white) Seven colours(cyan, magenta, yellow, black, red, orange, white) and primer Seven colours(cyan, magenta, yellow, black, red, white, gloss) and primer Six colours(cyan, magenta, yellow, black, white, gloss) and primer Six colours(cyan, magenta, yellow, black, white, gloss) Four colours(cyan, magenta, yellow, black) Shrink solution; EUVS (CMYK and Wh) with EUV5 (Re, Or and Gl) Shrink solution; EUVS (Wh) with EUV5 (CMYK, Re, Or and Gl) Shrink solution; EUVS (CMYK and Wh) with EUV5 (Re, Pr and Gl) Shrink solution; EUVS (Wh) with EUV5 (CMYK, Re, Pr and Gl) |
||||||
| Ink curing unit | Built-in UV-LED lamp | ||||||
| Print resolution (dots per inch) | Max. 1440 dpi | ||||||
| Cutting speed | 10 to 300 mm/s |
||||||
| Blade force 2 | 30 to 500 gf | ||||||
| Blade | Type | Roland CAMM-1 series blade | |||||
| Offset | 0 to 1.500 mm (0 to 59 mil) | ||||||
| Software resolution (when cutting) | 0.025 mm/step (0.98 mil/step) | ||||||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||||||
| Power-saving function | Automatic sleep feature | ||||||
| Power requirements | 100-240 Va.c. 50/60Hz 2.8 A | 100-240 Va.c. 50/60Hz 2.7 A | |||||
| Power consumption | During operation | Approx. 250 W | Approx. 240 W | ||||
| Sleep mode | 40 W | ||||||
| Acoustic noise level | During operation |
63 dB (A) or less | |||||
| During standby | 53 dB (A) or less | ||||||
| Dimensions (with stand) | 2819 (W) x 781 (D) x 1316 (H) mm |
1945 (W) x 781 (D) x 1316 (H) mm |
|||||
| Weight (with stand) | 163 kg (360 lb.) | 125 kg (276 lb.) | |||||
| Environment | During operation 3 | Temperature: 15 to 32 °C (59 to 89.6 °F), fumidity: 20 to 80 %RH (no condensation) | |||||
| Not operating | Temperature : 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation) | ||||||
