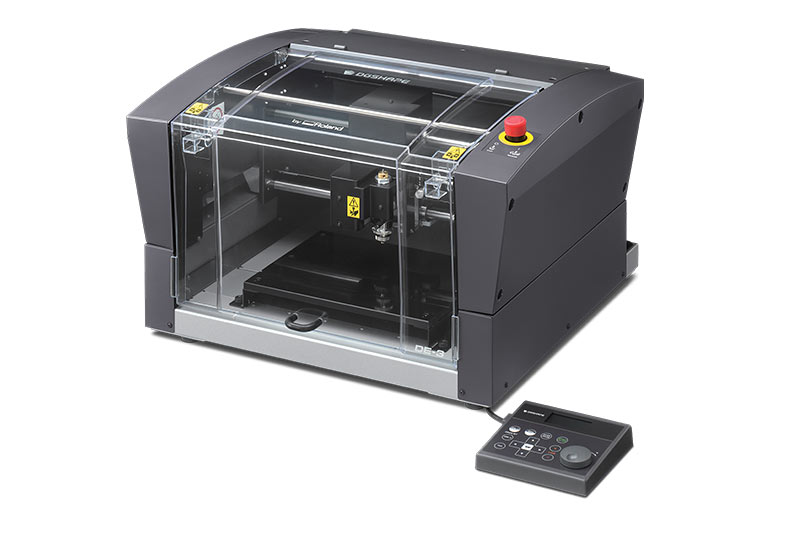

DE-3 Desktop Engraver
For over 30 years Roland DG has lead innovation in rotary engraving technology and continues to break new ground with the DE-3 DGSHAPE Engraver. Featuring laser-pointing technology, automatic depth regulation and other intelligent enhancements, the DE3 is the smartest, most intuitive rotary engraver on the market.
Roland Rental, Roland DG's finance program, is aimed to make it easy for you to purchase and pay for your new business investment.
Roland Rental enables you to enjoy the use of Roland equipment throughout its useful life without the associated costs of ownership including up front capital investment. Roland Rental offers a simple approval criteria and documentation to secure your Roland equipment.
Roland Rental is a traditional finance agreement whereby you own the asset at the end of the finance term with a nominal payment at the end of the term. It also allows you to bundle in other products, including software, with your agreement.
Discover More Applications with DE-3 Engraving
Effortlessly scribe and engrave onto a huge range of giftware, signage, trophies, tools and industrial products. Personalise brass, aluminium, copper, engraving plastic, wooden items and more, with the speed, precision and ease of the powerfully compact DE-3.

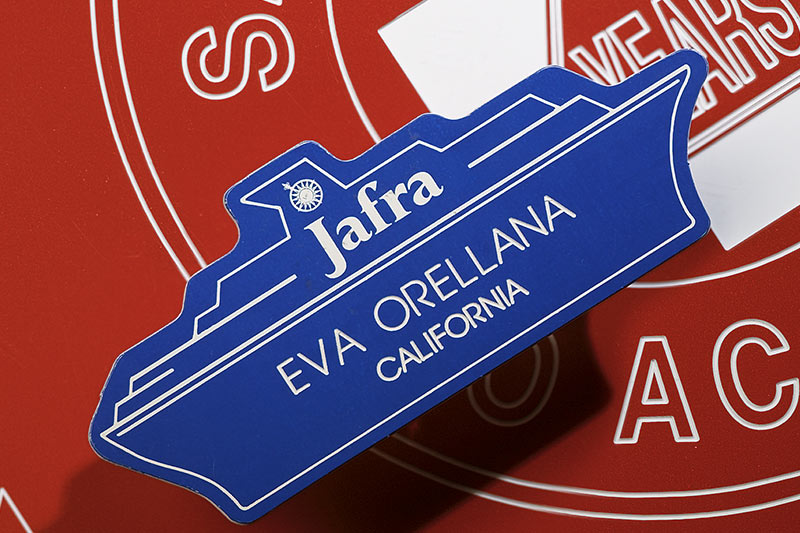

Engrave onto a range of plastics and composite materials that include PCB circuit boards.

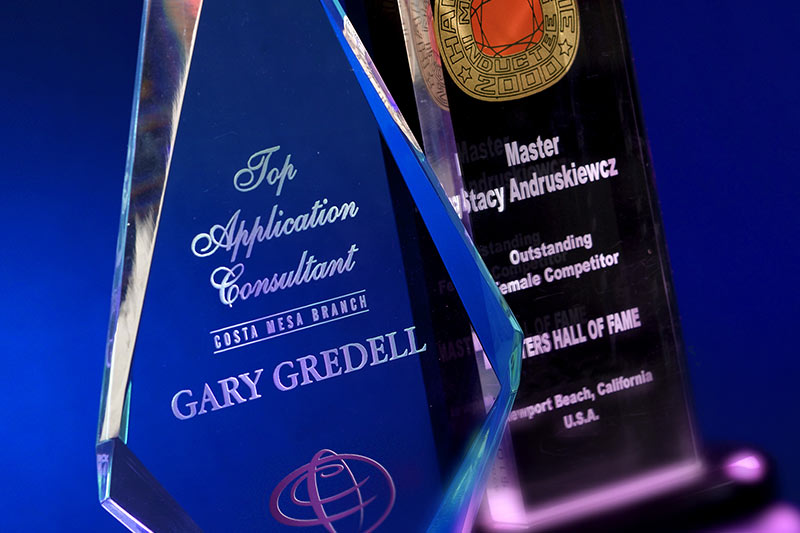

Scribe names and graphics onto glass and acrylics with the versatility of the DE-3.

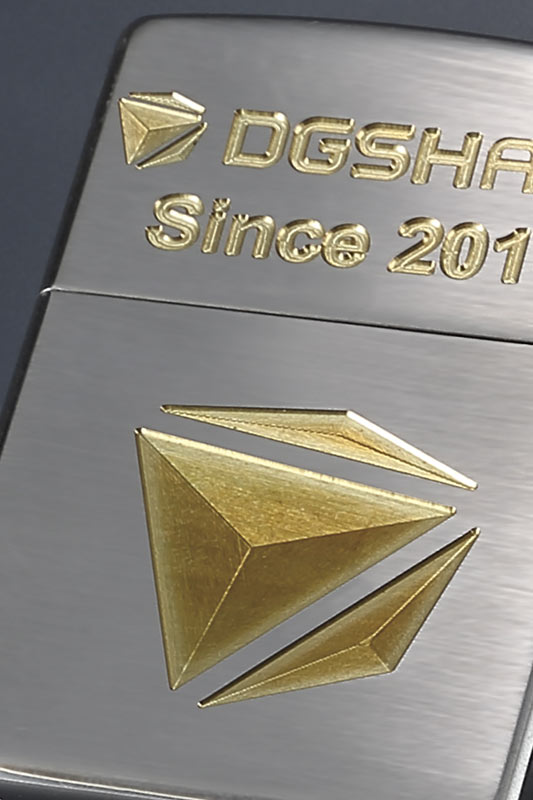

Engrave onto gold, silver and other high-value metals to create profitable personalised giftware.

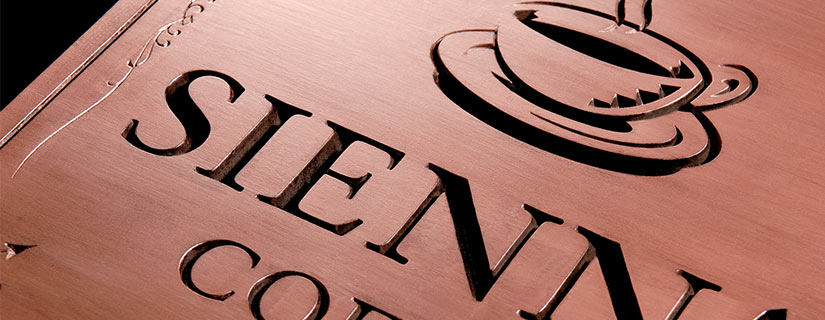

Add text and graphics onto plaques and signs with crisp, clean precision, and without the surface burning that laser engravers produce.

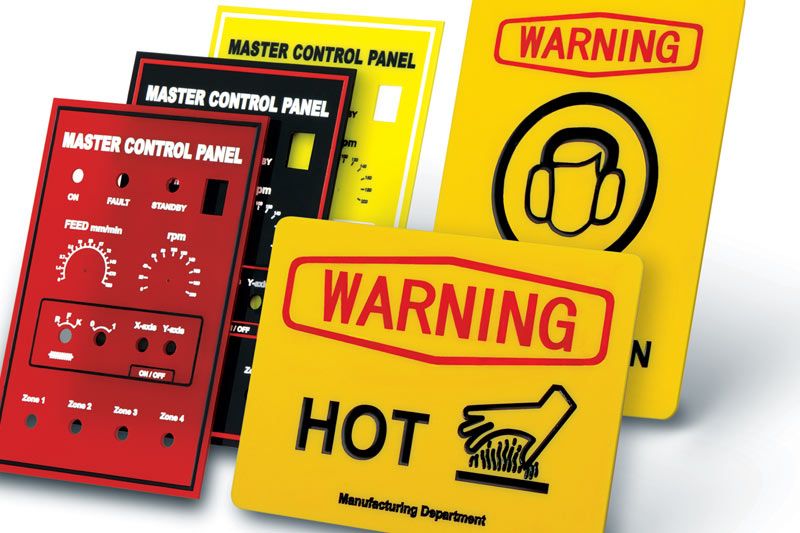

Personalise industrial tools, nameplates and safety signs in metal, plastic, and other materials.

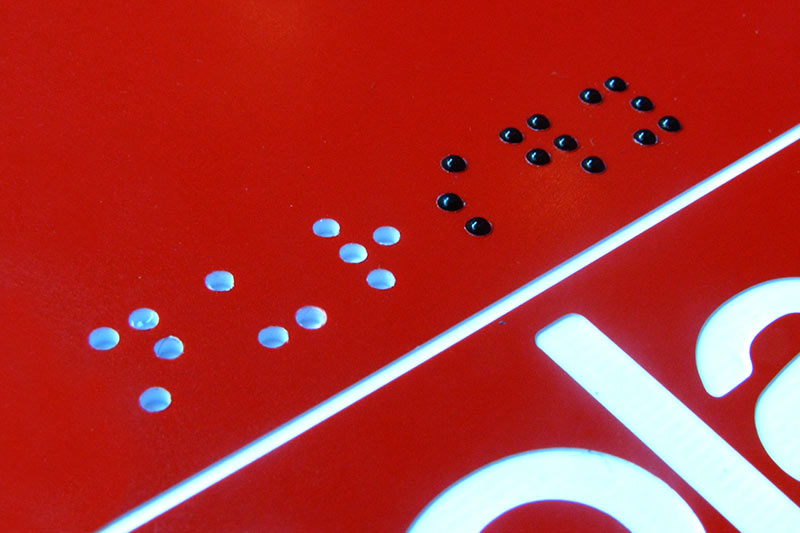

Create ADA compliant signage with the addition of all-in-one ADA Signage Kit.
Laser Pointer
A laser pointer accurately defines the origin point and displays an engraving path preview on the media— set the engraving position at the touch-of-a-button for accurate personalisation every time.
Precision Engraving
Easily-applied nose cones can be added to the spindle unit to automatically regulate engraving depth on the media surface— avoiding scratches to delicate materials and delivering consistently precise results.
Fast and Easy Production
Powered by a 20,000 rpm DC brushless motor, the DE-3 utilises advanced surface detection and other automatic features to make set-up and engraving a quick and simple process.

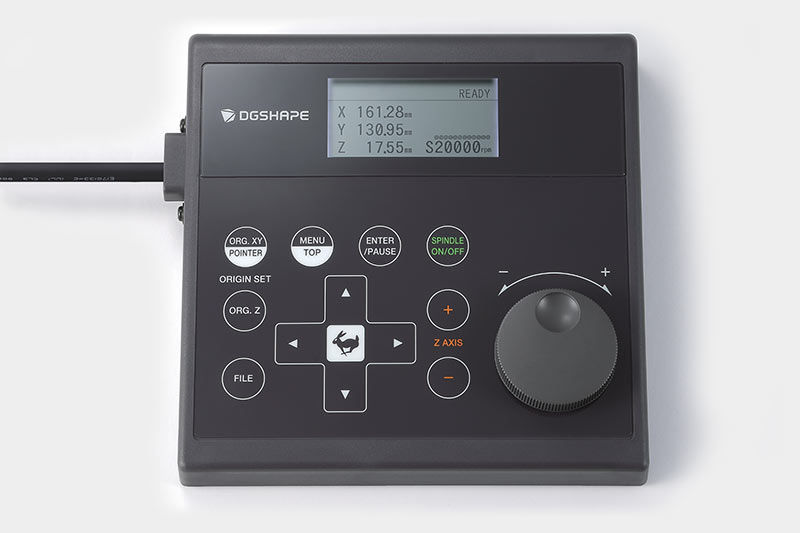

Hand-Held Control

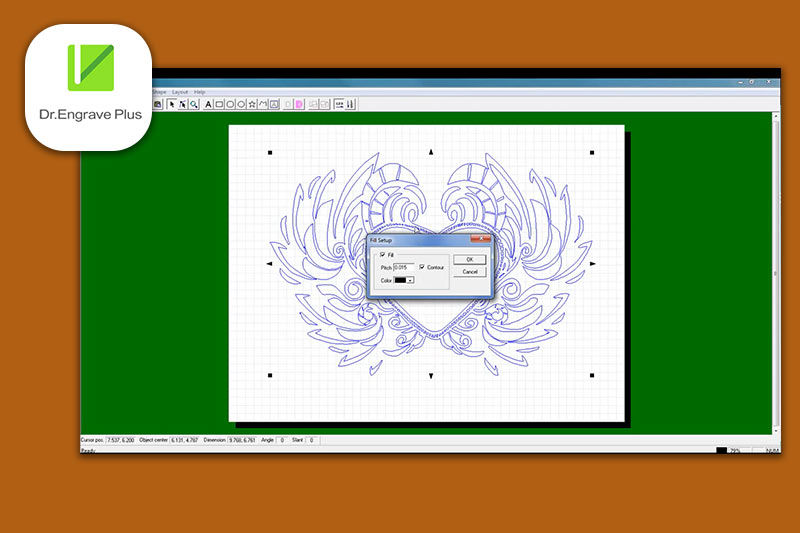

New Software and Open Architecture
The DE-3 is open source technology that works out-of-the-box with all popular engraving software, industry standard tools, and materials. Also included with purchase of the DE-3 is Dr. Engrave Plus software that offers new user advantages.
- Now supports AI files and standard graphic/vector data
- Newly added levelling and drilling functions enable standard text engraving as well as surface levelling and hole drilling
- Retains handy template functions and Excel and CSV databases for fast engraving of serial data jobs
$name
| MODEL | DE-3 | |
|---|---|---|
| Work Table Size | 305mm x 230mm | |
| Maximum Work Area (Work Envelope) | 12”(X) x 9.1”(Y) x 1.6”(Z) 305 mm(X) x 230 mm (Y) x 40mm (Z) |
|
| XYZ Axis Drive System | Stepper motor, 3-axis simultaneous control | |
| Operating Speed | XY axis: | 0.1 ～ 60 mm/sec. |
| Z axis: | 0.1 ～ 30mm/sec. | |
| Software Resolution | 0.004” (0.01 mm) /step | |
| Mechanical Resolution | XYZ-axis: | 0.00125 mm/step |
| Spindle Motor | Brushless DC Motor | |
| Spindle Speed | 5,000 ～ 20,000 rpm | |
| Tool Loading | Cutter Holder, Collet Type | |
| Maximum Material Thickness | 40 mm（38 mm when using the nose cone） | |

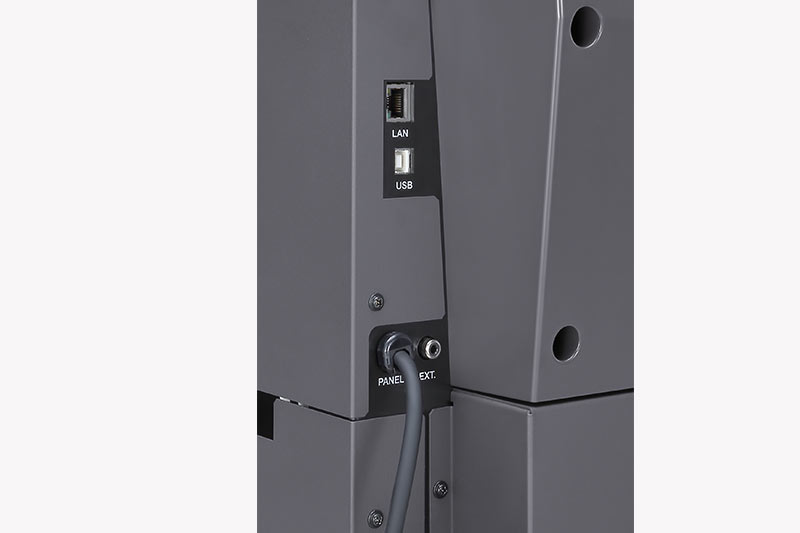

| Connection | USB | |
| Machine Language | RML-1 | |
| Power Supply | Voltage and Frequency | AC100V ± 10%、50/60Hz（Overvoltage category: Category Ⅱ, IEC60664-1) |
| Rated Current | 1.0 A | |
| Power Consumption | 80 W | |
| Operating Noise | While Operating： | 60 dB（or less) |
| Standby： | 40 dB（or less) | |
| External Dimensions | 616mm × 587mm × 390mm | |
| Machine Weight | 35 kg | |
| Installation Environment | Indoor use, altitude: | 2000 m or less |
| Temperature | 5 to 40 °C | |
| Humidity | 35 to 80% (no dew condensation) | |
| Environment pollution degree: | 2 | |
| Bundled Accessories | "Power cord, power adapter, USB cable, nose cone unit (resin / metal components), nose unit set screw (fixing screw, spring), spare set screw (for cutter holder) , Solid collet (∅ 3.175 mm), spanner wrench, hex wrench, hex driver, adhesive sheet, dust collector adapter, DGSHAPE Software Package CD, Setup Guide" | |
Reliability and Support
As the world leader in desktop rotary engraving devices, Roland DG offers users unmatched product performance and reliability, backed by industry-leading service and support. The DE-3 comes with a three-year parts n' all warranty. As the world leader in desktop rotary engraving devices, DGSHAPE offers superior machine reliability, backed by the best service and support in the industry.
Roland DG’s international ISO certifications are a guarantee of exceptional quality.
At the forefront of advanced machine manufacturing for 37-years, Roland DG continues to provide practical and reliable technology with unmatched service and support.
DGSHAPE further builds on this reliability promise by improving user experience with fast and effortless engraving machines, designed for those just starting out and for engraving experts looking for a more intuitive solution.
