MODELA MDX-50 Benchtop Milling Machine Features

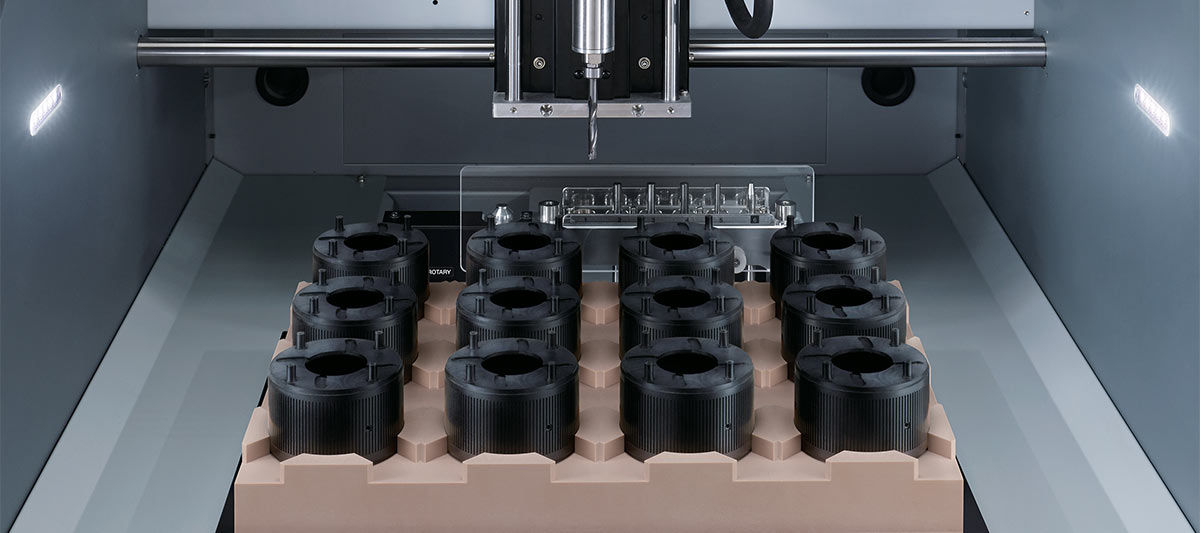

MDX-50 Workspace with Sample
MDX-50 Workspace with Sample

Precision Milling on a Wide Range of Materials

The following items are just some of the materials that can be milled with the MDX-50 benchtop CNC mill:

ABS
POM
Nylon
Plastic Foam
Modeling Wax
PVC
Plywood
Hardwood
Acetal

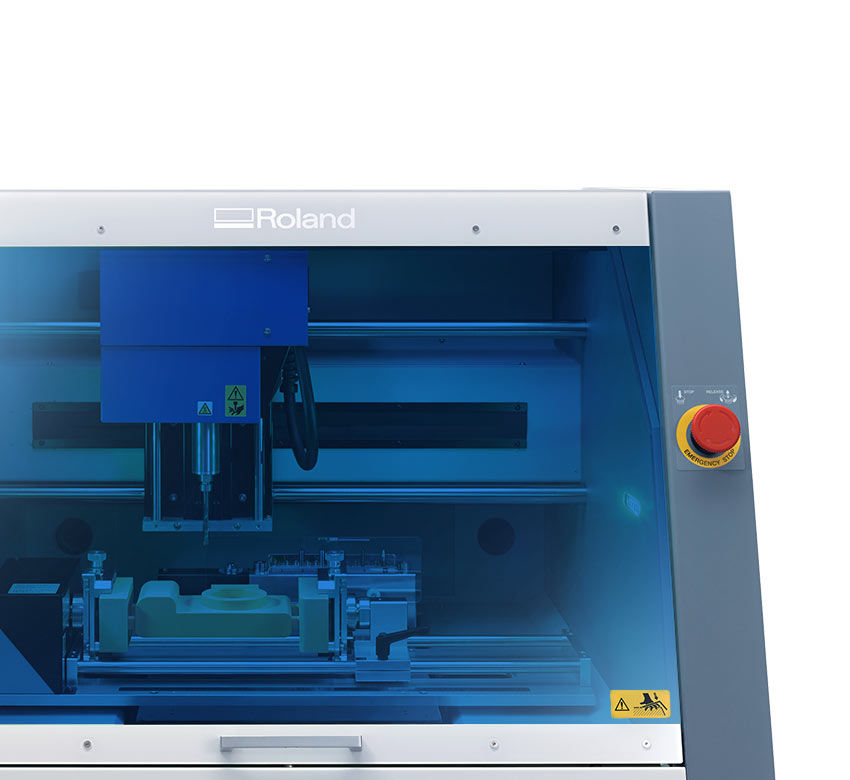

MDX-50 closeup with prototype

Mill Fine Details and Smooth Finishes

With an improved drive system, machine rigidity and enhanced drive mechanics, the MDX-50 mills incredibly smooth and accurate prototypes for testing structure, function, and assembly with other parts. A machining area of 400mm (X) x 305mm (Y) x 135mm (Z) supports production of large single objects or batch production of smaller multiple parts.

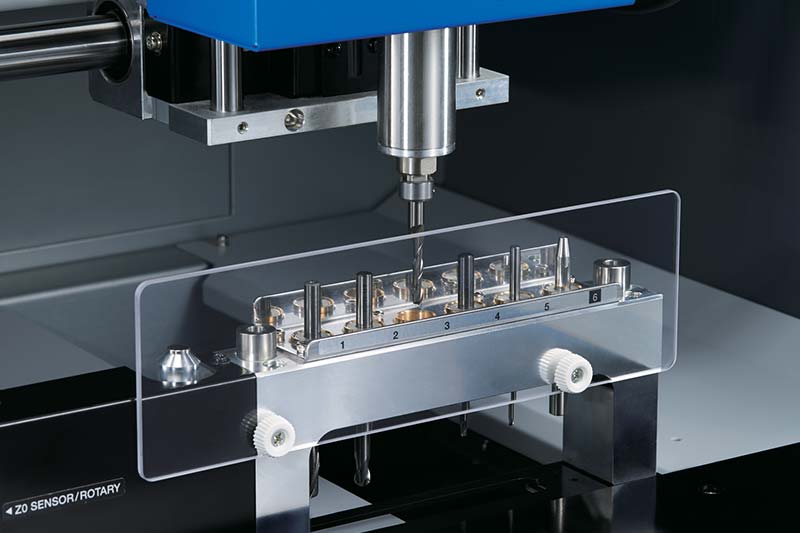

MDX-50 Tool Changer

Free Your Time

The automated features of the MDX-50 enables users to mill with speed and confidence. Combine the 5-station ATC and optional rotary axis unit for the most automated and precise operation:

  • Auto-sensing function corrects the tool length to ensure milling accuracy for every job
  • Optional rotary axis for effortless production of complex surfaces:
    • Includes a wide, self-centering headstock and tailstock workpiece clamps
    • Auto-rotates materials from 0-to-360 degrees
    • Indexes for 2-sided, 4-sided and custom angles

$name

SRP Player

Included Software for Experts and Beginners

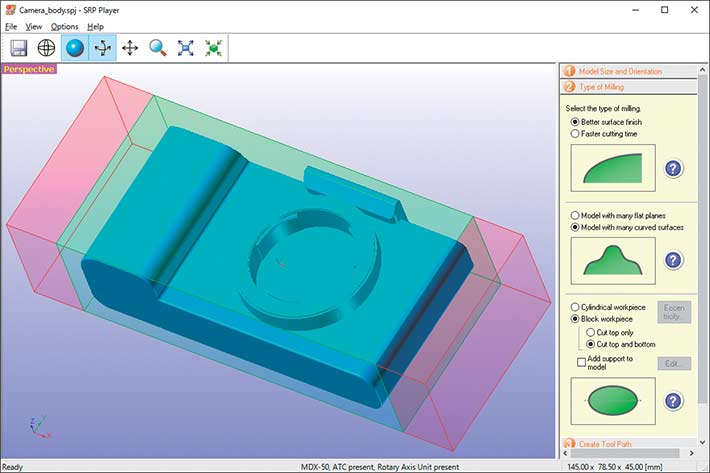

SRP Player

SRP Player CAM

The popular in Industry and Education software has been updated to match the advanced functions of the MDX-50. Milling settings can be configured in five simple steps, making operation straightforward even for those new to milling.

SRP PLAYER DETAILS

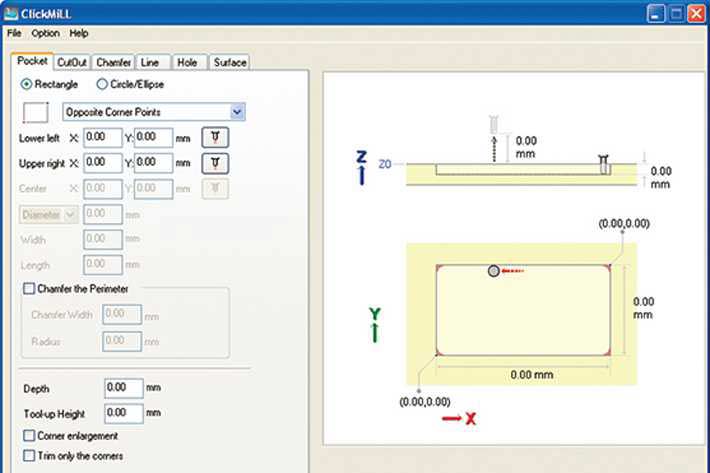

ClickMill
ClickMill

ClickMill

ClickMill Software provides direct control of the MDX-50 for surfacing, drilling holes, cutting pockets and other finishing processes, all without having to access CAD or CAM software.

$name

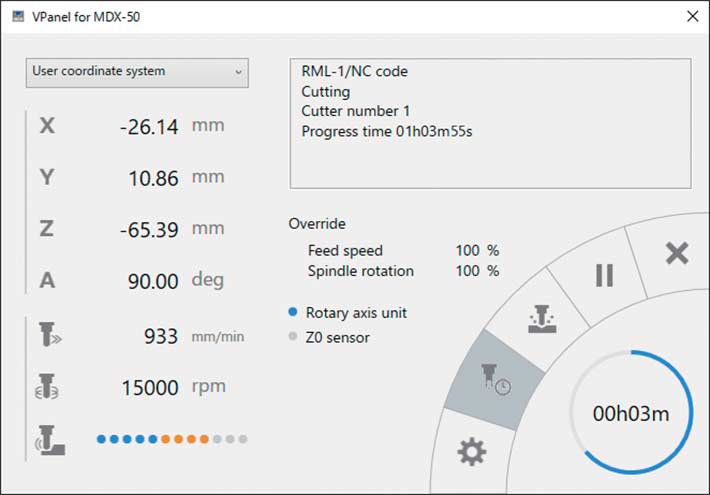

VPanel
VPanel

Virtual Control Panel (VPanel)

VPanel serves as a computer-based virtual control panel with all of the functionality of the physical on-board control panel, as well as tool life management and e-mail alerts.
Roland international ISO certifications
Roland international ISO certifications

The Peace of Mind That Comes with Buying a Roland DG Device

With the MDX-50 you get the same built-to-last reliability and unmatched service and support that Roland DG devices are famous for. Like all Roland DG products, the MDX-50 was designed and manufactured at a state-of-the-art, ISO-certified facility. With a 3 Year Parts ‘n All Warranty, you have the peace of mind knowing your device is backed by one of the most comprehensive warranty packages in the industry.
